Honeywell Eclipse 5145 Handheld Scanner

Honeywell Eclipse 5145 Handheld Scanner

5145 Handheld Scanner

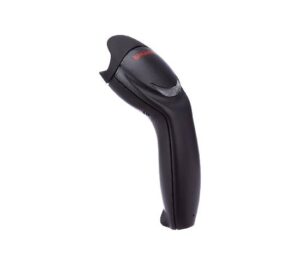

Honeywell Eclipse 5145 Handheld Scanner is a low cost laser-based alternative to CCD scanners.

Its compact form factor and high end feature set simplify its use in a variety of applications at the press of a button. Eclipse is a single-line, hand-held laser scanner.

CodeGate function (patented):

A function to read the code by irradiating the code to be read with a laser and then pulling the trigger.

The target code can be read with pinpoint accuracy even in situations where barcodes such as code tables are dense.

Barcode automatic detection function:

When a code is detected, the standby state automatically shifts to the readable state. Simply press the trigger button to read.

Lightweight body:

The main body weighs only 100g.

It is an original design that minimizes the burden on workers who work for long hours and focuses on operability.

SPECIFICATION:

Dimensions (LxWxH): 169 mm x 63 mm x 51 mm (6.7 in x 2.5 in 2.0 in)
Weight 100 g (3.5 oz)
Input Voltage 5 VDC ± 0.25 V
Operating Power 675 mW (125 mA @ 5 V)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Scan Pattern Single scan line
Scan Speed 72 scan lines per second

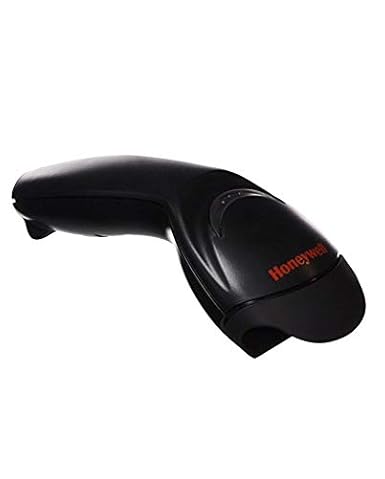

Honeywell Eclipse 5145 Single-Line Laser Barcode Scanner

The Honeywell Eclipse 5145 is an entry level single line laser barcode scanner that’s low on price but not low on features.

The Honeywell Eclipse 5145 is equipped with the patented CodeGate technology,

which is a targeting assist feature that helps the user get a good read almost 100% of the time.

The Eclipse 5145 also employs the patented CodeSense technology that switches the scanner from pulse mode to always on mode whenever a barcode is detected in front of it.

The Eclipse 5145 is an ideal choice for low to mid volume scanning environments.

MECHANICAL

Dimensions – Scanner (L x W x H) 169mm x 63mm x 51mm (6.7˝ x 2.5˝ 2.0˝)
Dimensions – Base (L x W x H) –
Desktop/Wall Mount Base –
Weight – Wireless 100g (3.5oz)

Key Features and Benefits of Honeywell MS5145 Eclipse Barcode Scanner :

• CodeGate: Ideal for menu scanning applications
• CodeSense: Automatically switches from “pulse mode†to continuous beaming when a bar code is detected
• Powerlink cables: Uses the same user-replaceable cables and power supplies as Voyager, Orbit and Cubit
• Flash ROM: Update firmware from any PC via MetroSet2 software provided by Honeywell
• OPOS and JPOS system compatible: Easily adaptable to any end-user system environment

Flash ROM:

Protects POS investment with free firmware updates via MetroSet2 software and standard PC

Powerlink Cables:

Uses the same user-replaceable cables and power supplies such as Voyager® and Orbit®

Miniature laser scanner for small barcodes

• Compact hand-held laser scanner for all barcodes
• Scanning range 0-14 cm at 72 scans/sec.
• Very fast decoding
• Aggressive, single-line laser for fast scanning with CodeGate technology
• Suitable for high resolution barcodes

Product  Specification

-Menu scanning
-Point-of-sale
-Document processing
-Inventory control
-SCAN PERFORMANCE
-Scan Pattern
-Single scan line
-Scan Speed-72 scan lines per second
-Scan Angle – Horizontal: 50°
-Symbol Contrast-35% minimum reflectance difference
-Pitch, Skew-68°, 52°
-Decode Capability -Reads standard 1D and GS1 DataBar symbologies
