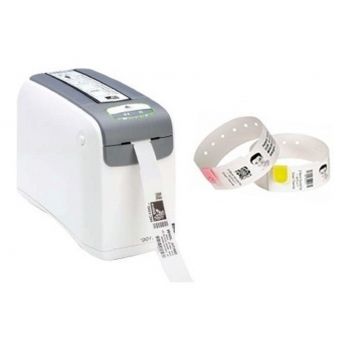

Zebra ZD510-HC Wristband Printing Solution, 558mm Max Print, 76mm Minimum Print, 300 dpi Resolution, 12 dots per mm, Dual-Wall Frame, USB Host, USB, Ethernet, BLE Connectivity | ZD510-HC

ZD510-HC A Wristband Printer That Specializes in HealthcareThe ZD510-HC wristband printing solution combines the reliable ZD510-HC direct thermal printer with easy-to-load cartridges containing the only antimicrobial-coated wristbands on the market─Zebra’s Z-Band® wristbands. Also capable of printing wristbands for amusement, water park and entertainment applications, you get dependable wristband printing that increases patient safety and staff productivity. Key Features
Designed to Improve Safety and Data Security

Maximum Uptime with Comprehensive Remote Management Options

Easy-to-use — Virtually No Training Required

Compatible with leading ADT systems

Quick and easy wristband cartridge loading

Automatic print speed setting-up to 4 ips depending on the installed cartridge

Direct thermal printing of barcodes, text, and graphics

Dual-wall frame, impact-resistant plastic

ZPL or ZPL II programming language

512 MB Flash memory

256 MB SDRAM memory

Element Energy Equalizer- (E3-) for superior print quality

Connectivity: USB Host, USB, Ethernet, Bluetooth Low Energy

Odometer for print-length tracking

Illuminated media low/media out indicator
  Specifications

Physical Characteristics
Dimensions: 5 in. W x 7 in. H x 9.5 in. D (127 mm W x 178 mm H x 242 mm D)

*Requires 6 in./153 mm clearance above printer to load cartridge

Printer Specifications
Maximum Print Length: 22 in./558 mm

Minimum Print Length: 3 in./76 mm

Print Widths: 0.75 in./19.05 mm, 1 in./25.4 mm, 1.1875 in./30.16 mm

Resolution: 300 dpi/12 dots per mm

Maximum Print Speed: Healthcare: 2 in./51 mm per second

Z-Band Fun and Z-Band Splash: 4 in./102 mm per second

Media Characteristics
Healthcare Wristbands:

– Adhesive or clip closure

– Adult, child and infant sizes

– Barcodes on Z-Band wristbands are proven to withstand water, soaps, foams, alcohol and other common solvents found in a healthcare environment, and remain scannable for longer than the average patient stay

Hospitality Wristbands:

– One-day and multi-day wristband options

– Seven bright colors

– Designed for amusement parks, water parks, carnivals, zoos, sporting events and resorts

– Variable print-on-demand barcoded wristbands means the wristband does not have value until printed, reducing ticket fraud

Environmental (Printer)
Operating Temperature: 40° F to 104° F /4.4° C to 40° C

Storage Temperature: -40° F to 140° F /-40° C to 60° C

Operating Humidity: 20%-85% non-condensing R.H.

Storage Humidity: 5%-85% non-condensing R.H.

Cleaning: Healthcare wipeable plastic is designed to withstand a variety of disinfectants, chemicals and cleaning solutions. See zebra.com for a full list.

Environmental (Wristband Cartridge)
Service Temperature: -40° F to 140° F /-40° C to 60° C

Storage Temperature: 32° F to 70°F/0° C to 21° C at 35% to 50% non-condensing R.H.

Electrical
Universal power supply (PFC-compliant): 100—240VAC, 50—60Hz

ENERGY STAR qualified printer

Agency Approvals
Emissions: FCC Part 15, Subpart B, VCCI, RCM

Emissions and Susceptibility (CE): EN 55032:2012 class B and EN 55024:2010, EN 61000-3-2, EN 61000-3-3, CISPR 32:2015

Safety: CB Scheme IEC 60950-1 and IEC 62368-1, TÜV, NRTL

Power Supply: IEC 60601-1:2012

Options And Accessories
ZBI 2.0™: Factory- or field-installed, this powerful programming language lets printers run standalone applications, connect to peripherals, and much more

Factory installed wireless dual radio: 802.11ac Wi-Fi and Bluetooth 4.1

Font packs: Asian and other international font kits
