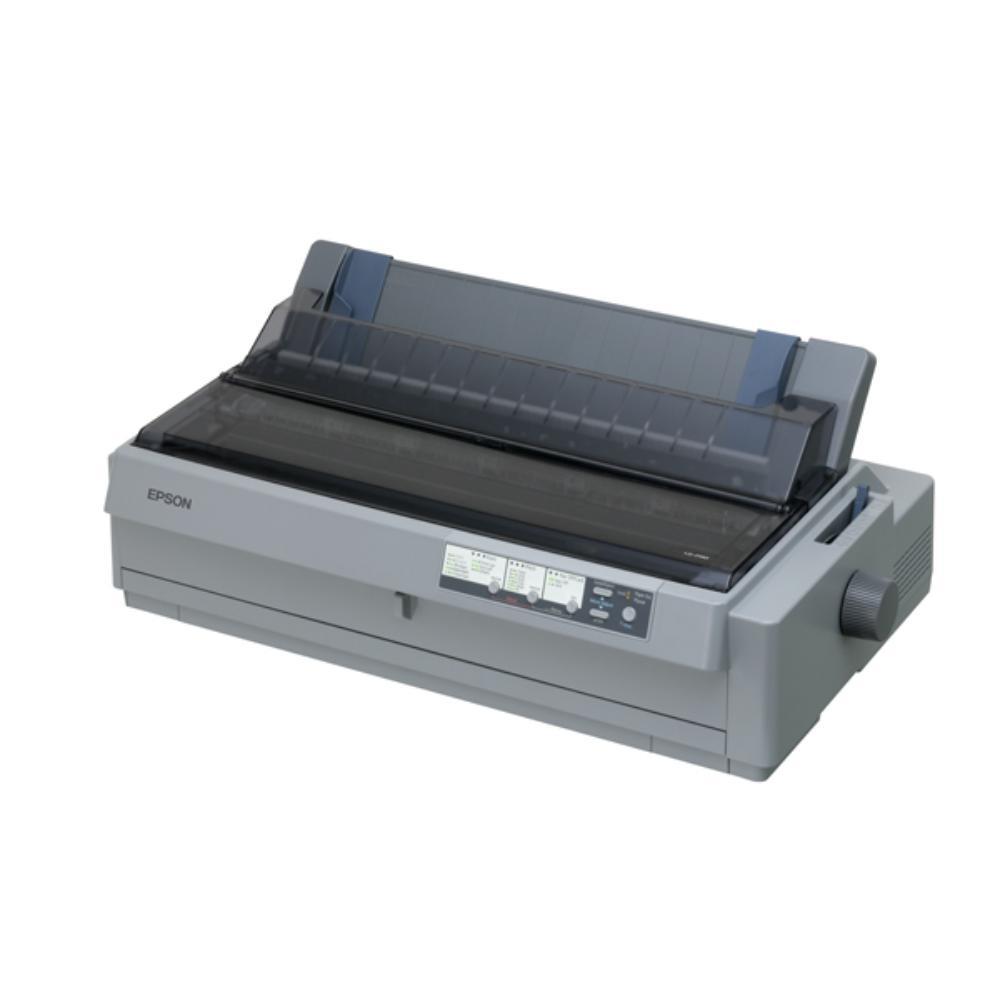

Epson LQ-2190 Dot Matrix Printer
Epson LQ-2190 Dot Matrix Printer
Product Overview
The Epson LQ-2190 is a high-performance 24-pin wide-carriage dot matrix printer designed for demanding business environments that require fast, reliable, and cost-effective printing of invoices, delivery notes, inventory reports, payroll forms, and multi-part continuous documents. Featuring a 136-column print width, exceptional durability, and high-speed printing up to 480 characters per second, the LQ-2190 is ideal for medium and large-volume printing operations.
Key Features
✔ 24-Pin Wide-Carriage Dot Matrix Printer
✔ 136-Column Printing Width
✔ Print Speed up to 480 cps
✔ Supports Multi-Part Forms (1 Original + 5 Copies)
✔ USB and Parallel Connectivity
✔ Optional Network Print Server
✔ Front, Rear, Bottom, and Top Paper Paths
✔ Long-Life Ribbon Cartridge
✔ Industrial-Grade Reliability
✔ Ideal for High-Volume Business Printing
Technical Specifications
| Specification | Details |
|---|---|
| Model | Epson LQ-2190 |
| Printer Type | Dot Matrix Impact Printer |
| Print Method | Impact Dot Matrix |
| Number of Pins | 24 Pins |
| Print Width | 136 Columns |
| Print Direction | Bi-Directional with Logic Seeking |
| Control Codes | ESC/P2 & IBM PPDS Emulation |
| Maximum Print Speed | Up to 480 cps (10 cpi) |
| Maximum Speed (12 cpi) | Up to 576 cps |
| Letter Quality Speed | Up to 240 cps |
| Input Buffer | 128 KB |
| Copies | 1 Original + 5 Copies |
| Interfaces | USB 2.0, IEEE-1284 Parallel |
| Optional Connectivity | Network Print Server |
| Ribbon Life | Up to 15 Million Characters |
| MTBF | 20,000 Power-On Hours |
| Print Head Life | 400 Million Strokes/Wire |
| Noise Level | 54 dB |
| Power Consumption | 46 W |
| Dimensions | 639 × 402 × 256 mm |
| Weight | 13 kg |
Performance & Reliability
Built for intensive workloads, the Epson LQ-2190 delivers exceptional durability with a Mean Time Between Failures (MTBF) of 20,000 power-on hours and a print head life of 400 million strokes per wire. These specifications make it an excellent choice for organizations that require continuous operation and high-volume document printing.
Multi-Part Forms Printing
The Epson LQ-2190 can print up to six-part forms simultaneously (one original plus five copies), making it ideal for:
- Invoices
- Delivery Notes
- Shipping Documents
- Warehouse Forms
- Inventory Reports
- Government Forms
- Banking Documents
Paper Handling
The printer offers flexible paper management with multiple paper paths:
- Front Feed
- Rear Feed
- Bottom Feed
- Top Exit
This flexibility allows seamless handling of continuous forms, single sheets, labels, and multipart stationery.
Connectivity
The Epson LQ-2190 integrates easily into modern and legacy business environments through:
- USB 2.0
- IEEE-1284 Parallel Port
- Optional Epson Network Print Server
Ideal Applications
- Logistics & Transportation Companies
- Warehouses & Distribution Centers
- Manufacturing Facilities
- Government Offices
- Banks & Financial Institutions
- Hospitals & Healthcare Facilities
- Retail Back Offices
- Accounting Departments
Package Contents
- Epson LQ-2190 Printer
- Ribbon Cartridge
- Power Cable
- User Guide
- Driver Software
- Warranty Documentation
