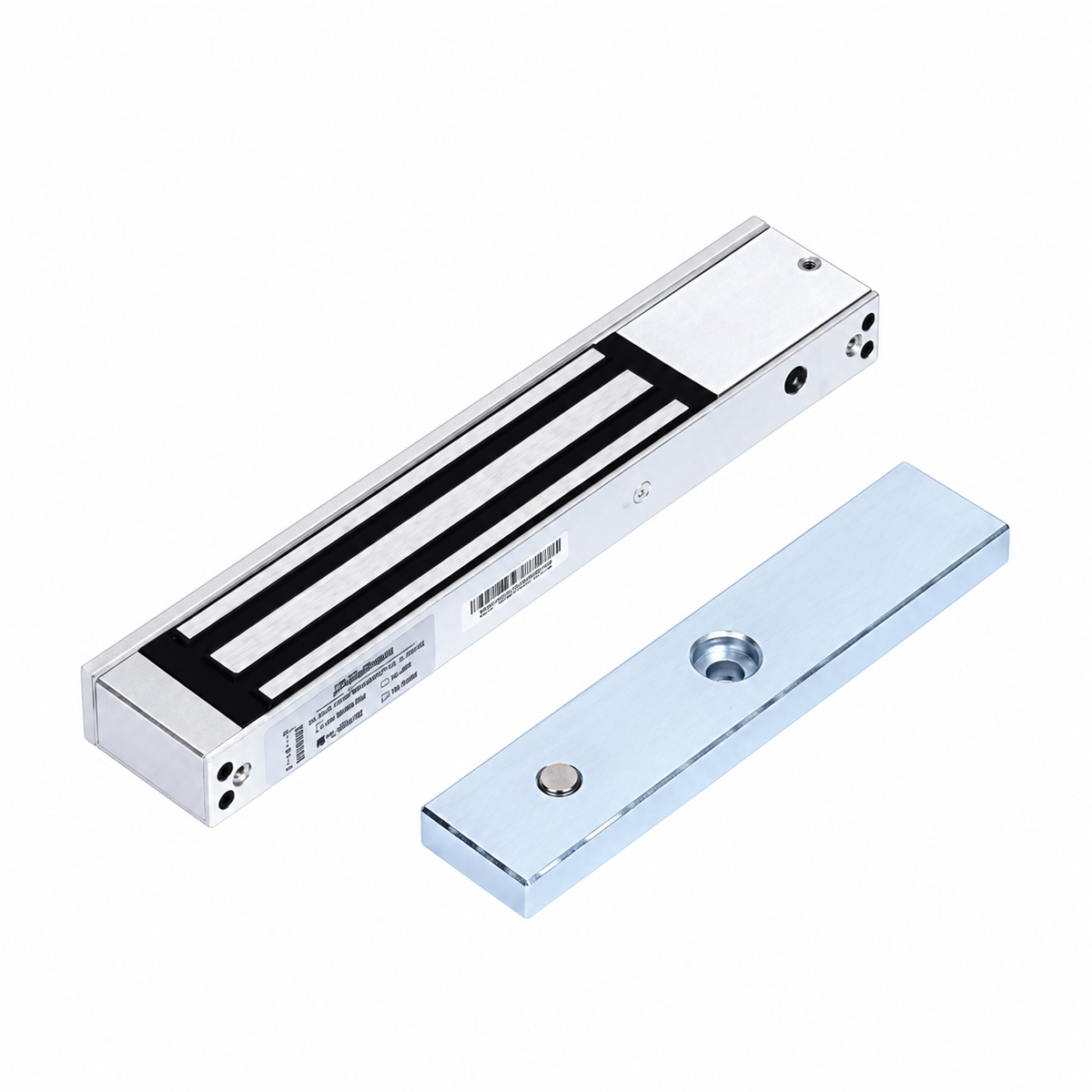

ZKTeco LM-2802 280KG Electromagnetic Magnetic Door Lock for Access Control Systems
ZKTeco LM-2802 280KG Electromagnetic Magnetic Door Lock for Access Control Systems

ZKTeco LM-2802 280KG Electromagnetic Magnetic Door Lock for Access Control Systems

ZKTeco LM-2802 is a 280 kg electromagnetic door lock designed for professional access control and security systems. It operates on 12V DC with approximately 420mA current draw and uses a fail-safe power-on locking design that releases when power is removed. Its compact anodized aluminium body and LED indicator make it suitable for offices, businesses and controlled-entry installations.
Regular price LE 1,615.00
Sale price LE 1,615.00 Regular price
Unit price
Compare Ask a question

Ask a Question

* Required fields

 Size guide Share
ZKTeco LM-2802 280KG Electromagnetic Magnetic Door Lock for Access Control Systems

ZKTeco LM-2802 280KG Electromagnetic Magnetic Door Lock for Access Control Systems

Regular price LE 1,615.00
Sale price LE 1,615.00 Regular price
Unit price
Product description
Shipping & Return
Product reviews
Specification Details
Brand ZKTeco
Model LM-2802
Product Type Electromagnetic Door Lock
Application Access Control & Security Systems
Door Configuration Single Door
Working Mode Power-On to Lock
Lock Type Fail-Safe Electromagnetic Lock
Holding Force Up to 280 kg / 600 lbs
Operating Voltage 12V DC
Current Draw Approx. 420mA @ 12V DC
Lock Body Dimensions 250 × 47 × 25.5 mm
Armature Plate Dimensions 180 × 38 × 11 mm
LED Indicator Yes
Wiring 2 Wires – Power Positive / Negative
Surface Temperature Rise ≤ +20°C
Operating Temperature -10°C to +55°C
Lock Body Material Anodized Aluminium Housing
Weight Approx. 1.9 kg
Installation Type Surface Mounted
Colour Silver

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

Features

Provides up to 280 kg holding force for secure single-door access control.
Electromagnetic locking technology provides reliable and quiet door operation.
Power-on-to-lock design automatically releases the door when electrical power is removed.
Operates from a 12V DC power supply.
Current draw is approximately 420mA at 12V DC.
LED power indicator provides convenient visual operating status.
Two-wire power connection simplifies electrical installation.
Compact 250 × 47 × 25.5 mm lock body is suitable for professional access control installations.
180 × 38 × 11 mm armature plate provides secure magnetic contact.
Anodized aluminium housing provides a durable professional finish.
Operating temperature range from -10°C to +55°C supports a variety of installation environments.
Suitable for integration with access control terminals, exit buttons and compatible power supplies.
Surface-mounted design allows flexible installation on compatible door systems.
Designed for offices, companies, commercial buildings and controlled-entry areas. ZKTeco Maroc - ZKTeco Co., Ltd
