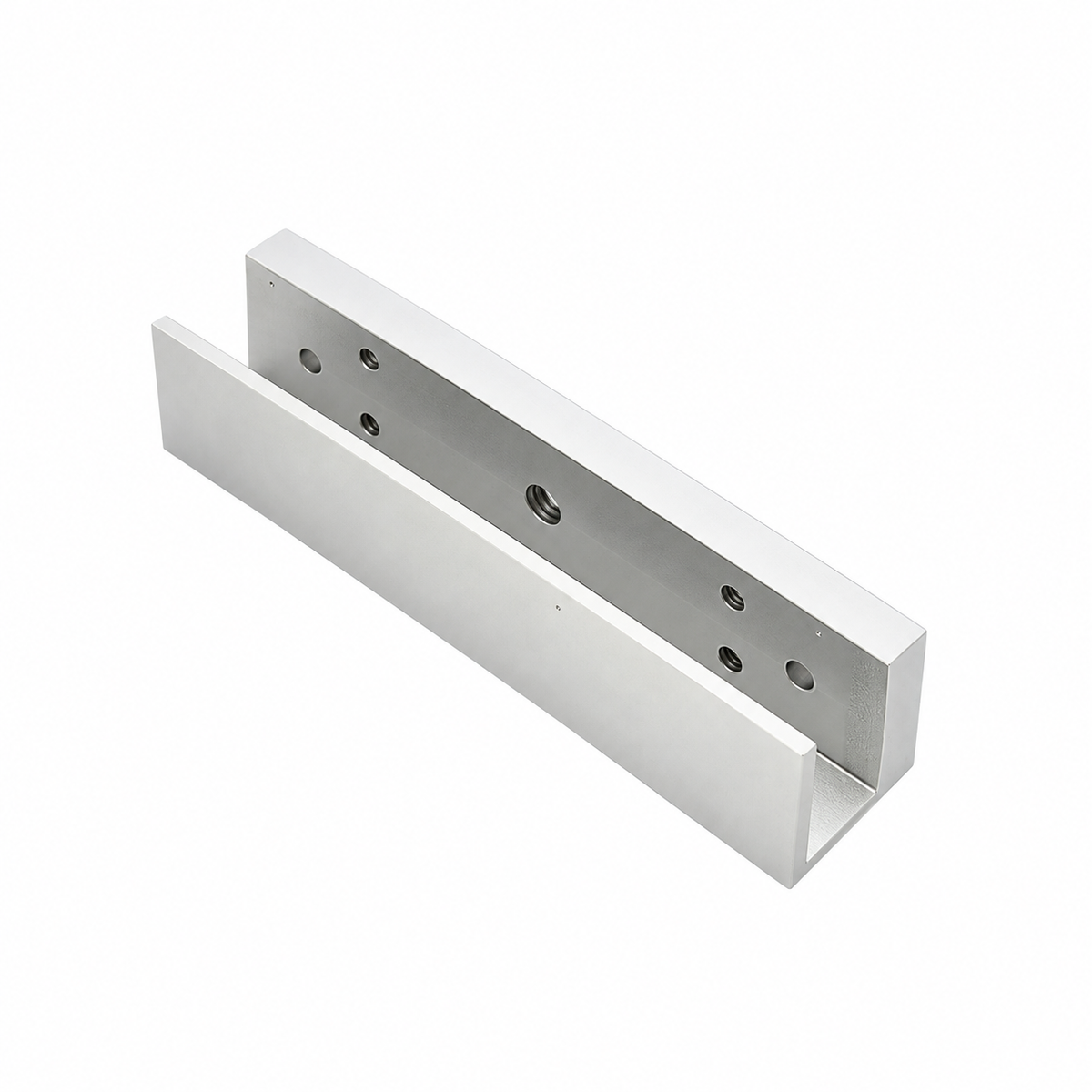

ZKTeco LM-280U electromagnetic door lock U-shaped mounting bracket, angled view showing silver metal construction and mounting holes for access control systems.

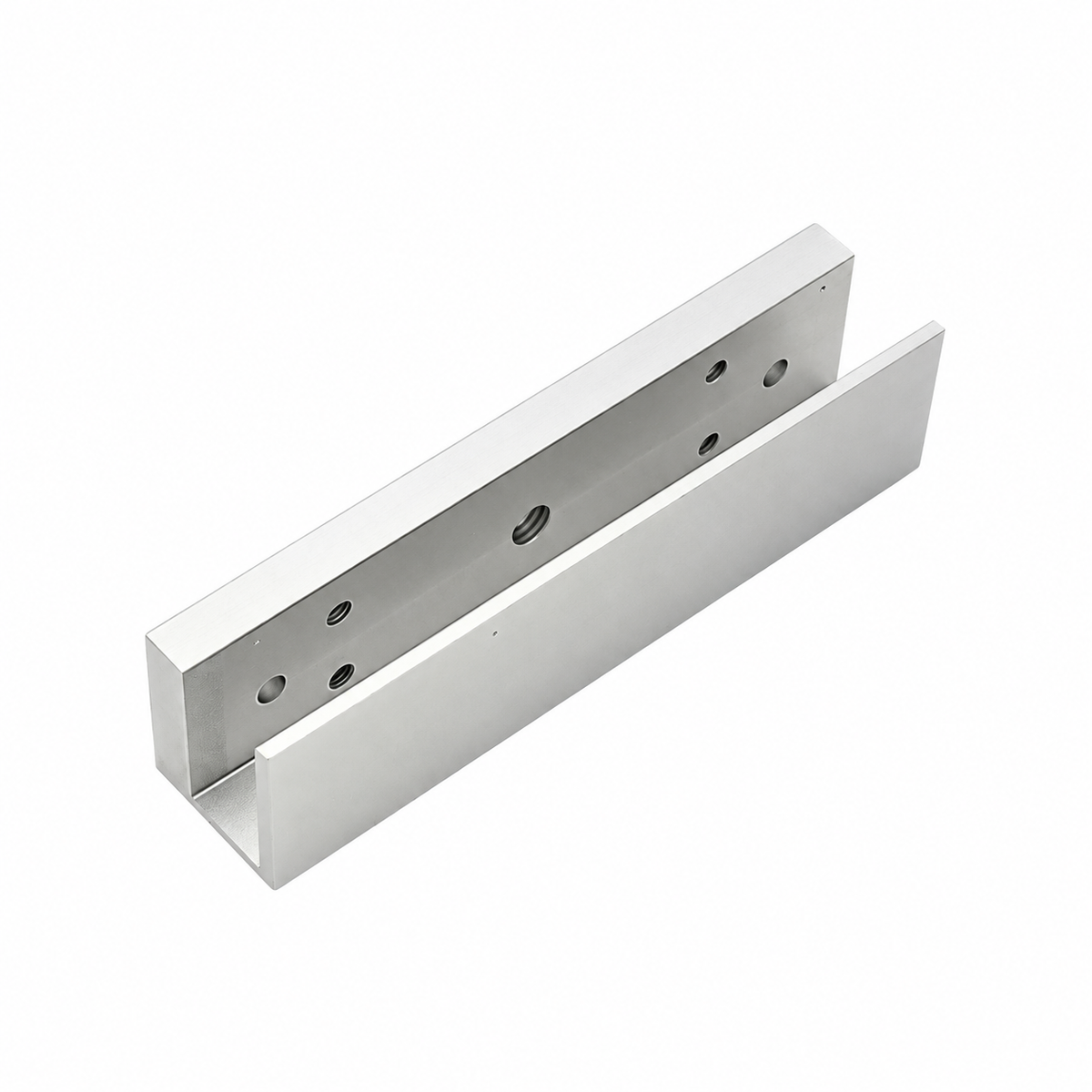

ZKTeco LM-280U magnetic door lock U-bracket, side perspective view showing pre-drilled fixing holes and metal channel design.
ZKTeco LM-280U electromagnetic door lock U-shaped mounting bracket, angled view showing silver metal construction and mounting holes for access control systems.
ZKTeco LM-280U magnetic door lock U-bracket, side perspective view showing pre-drilled fixing holes and metal channel design.

ZKTeco LM-2802 Electromagnetic Door Lock with 200kg Holding Force

ZKTeco LM-2802 is a 12V electromagnetic door lock designed for professional access control and security systems. It provides a holding force of 200kg ±5% and uses a fail-safe design that releases the door when power is removed. The lock can be installed with compatible LMB-280 series brackets, including the LMB-280U for suitable glass-door applications.
Regular price LE 680.00
Sale price LE 680.00 Regular price
Unit price
Compare Ask a question

Ask a Question

* Required fields

 Size guide Share
ZKTeco LM-280U electromagnetic door lock U-shaped mounting bracket, angled view showing silver metal construction and mounting holes for access control systems.

ZKTeco LM-2802 Electromagnetic Door Lock with 200kg Holding Force

Regular price LE 680.00
Sale price LE 680.00 Regular price
Unit price
Product description
Shipping & Return
Product reviews
Specification Details
Brand ZKTeco
Model LM-2802
Series LM-280 Series
Product Type Electromagnetic Door Lock
Application Access Control & Door Security Systems
Lock Type Magnetic / Electromagnetic Lock
Holding Force 200kg ±5%
Operating Voltage DC 12V
Operating Current 450mA ±5%
Lock Operation Fail-Safe
Power-Off Status Unlocks When Power is Removed
Lock Body Dimensions 250 × 47 × 25.5 mm
Armature Plate Dimensions 180 × 38 × 11 mm
Gross Weight Approx. 1.77 kg
Wiring Interface Red: Positive / Black: Negative
Door Status Signal No
Compatible Mounting Brackets LMB-280L, LMB-280U, LMB-280Z, LMB-280ZL
Installation Type Surface Mounted
Suitable Applications Access Control Doors, Offices, Commercial Buildings & Security Systems

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
ZKTeco LM-280U magnetic door lock U-bracket, side perspective view showing pre-drilled fixing holes and metal channel design.

Features

Provides a holding force of up to 200kg ±5%.
Electromagnetic locking technology provides reliable door security.
Operates using a 12V DC power supply.
Low 450mA operating current supports standard access control installations.
Fail-safe design releases the door when electrical power is removed.
Designed for integration with access control systems and biometric terminals.
Surface-mounted design provides straightforward professional installation.
Compatible with LMB-280L, LMB-280U, LMB-280Z and LMB-280ZL mounting brackets.
Suitable for different door installations when used with the appropriate mounting bracket.
Compact lock body measures 250 × 47 × 25.5 mm.
Armature plate measures 180 × 38 × 11 mm.
Suitable for offices, companies, commercial buildings and controlled-entry areas.
Designed for continuous access control and security applications.
